Case Study - BH21

The customer wanted:

• A high-efficiency solar PV system suited to their home

• Battery storage to increase self-consumption of solar energy

• Reduced exposure to future electricity price increases

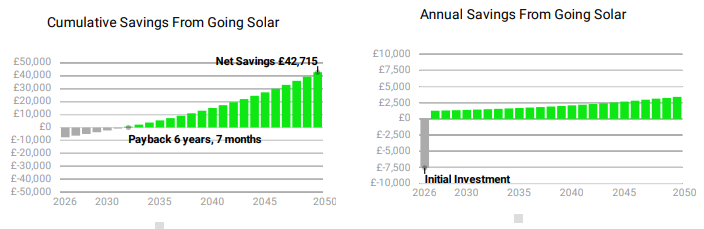

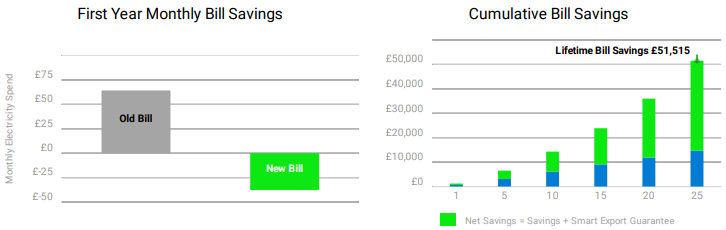

• Clear, transparent financial projections showing long-term savings

• A professionally designed and installed solution using reliable, proven technology

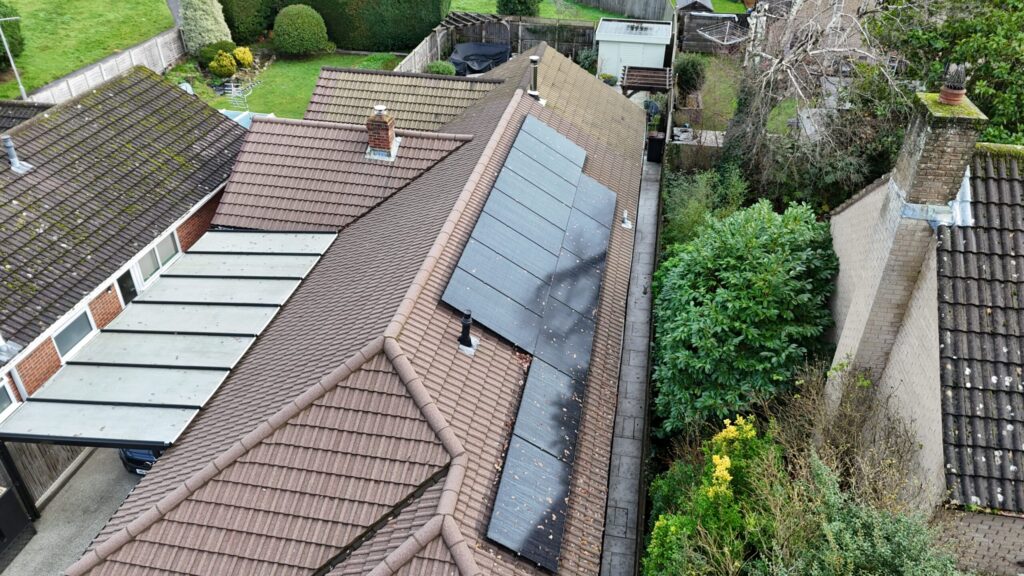

We designed a bespoke solar and battery solution tailored to the property’s energy usage and roof layout, ensuring strong annual generation while maximising on-site consumption.

The system was carefully specified to balance performance, affordability, and long-term financial return, helping the customer benefit both immediately and over the lifetime of the installation.

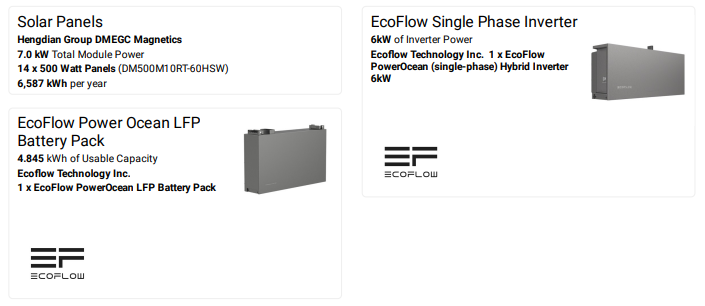

System Overview

• 7.0kWp solar PV system
  14 × 500W Hengdian Group DMEGC Magnetics panels (DM500M10RT-60HSW)

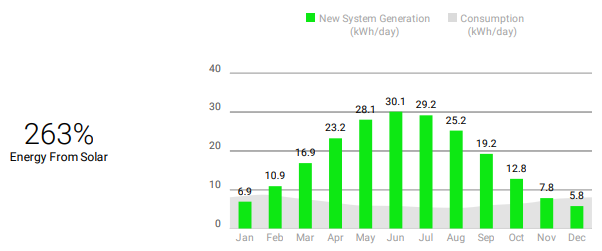

• Estimated annual generation:
  6,587 kWh per year

• 6kW hybrid inverter
  1 × EcoFlow PowerOcean single-phase inverter

• 4.845kWh battery storage capacity
  1 × EcoFlow PowerOcean LFP battery pack
