Case Study - DT11

The homeowner was looking for a future-proof renewable energy solution that would significantly reduce electricity bills while maximising long-term savings and energy independence.

Key requirements included:

• A high-output solar PV system capable of offsetting the majority of annual electricity usage

• Battery storage to allow solar energy to be used during evenings and overnight

• A system designed to maximise self-consumption, reducing reliance on the grid

• Integration of a solar diverter to use excess energy for hot water heating

• A solution that delivers strong financial returns with a clear payback period

• Minimal disruption during installation with a clean, professional finish

• Equipment from trusted manufacturers with long warranties and proven reliability

The final design needed to balance performance, efficiency, and long-term value while ensuring the system could adapt to future energy demands.

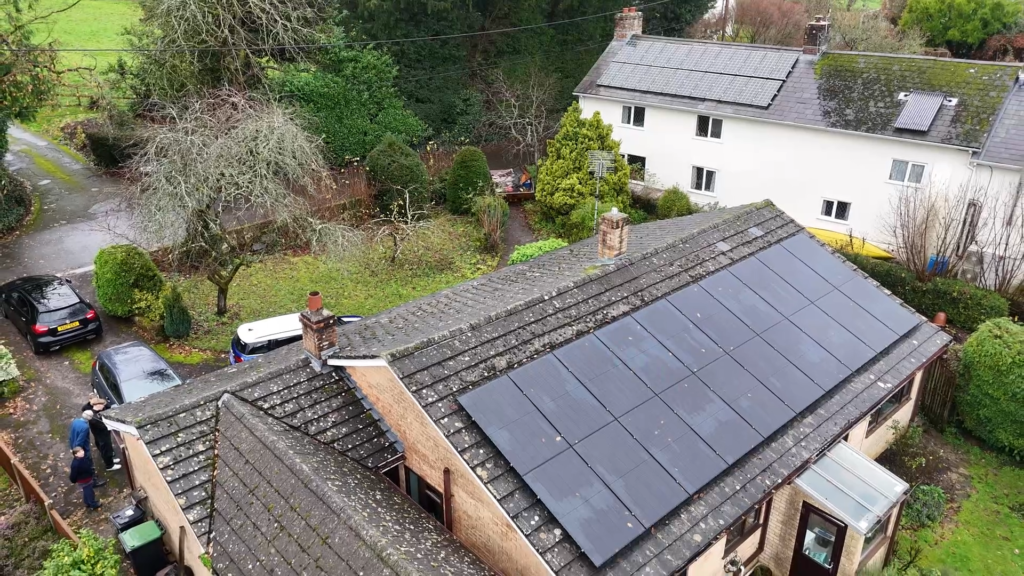

We designed and installed a 9.0kWp solar PV system paired with EcoFlow battery storage and a solar diverter, ensuring maximum self-consumption and long-term savings.

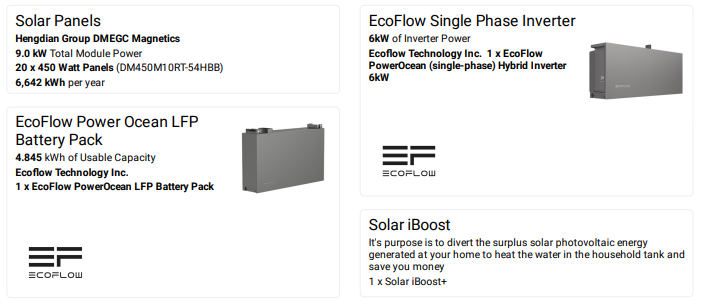

Installed System Includes:

• 20 × 450W Solar Panels (Hengdian Group DMEGC Magnetics)

• EcoFlow PowerOcean 6kW Hybrid Inverter

• EcoFlow PowerOcean LFP Battery (4.84kWh usable capacity)

• Solar iBoost+ hot water diverter

This setup allows excess solar energy to be stored or diverted to heat water, ensuring very little energy goes to waste.
