When set up in parallel, the HOME-ESS-LV-5.12K can carry up to 220A through the main circuit. This means it reacts faster to power needs, works in more installation types, and doesn’t require a combiner box.
Get in Touch
The battery features modern management and safety systems that keep it running safely at all times, so you can use it with total peace of mind.
Intelligent Monitoring
It keeps an eye on voltage, current, temperature, and more to optimise how the battery charges and discharges. Built-in protections help it run safely, last longer, and use energy more efficiently.
Submerged Fire Protection
It checks voltage, current, temperature, and more to optimise how the battery charges and discharges. Built-in protections keep it operating safely, help it last longer, and make energy use more efficient.
Lithium Iron Phosphate (LiFePO4) cells
LiFePO4 cells are safer, with much less risk of overheating or fire. They also last longer and charge more efficiently, giving you better long-term performance and improved energy use.

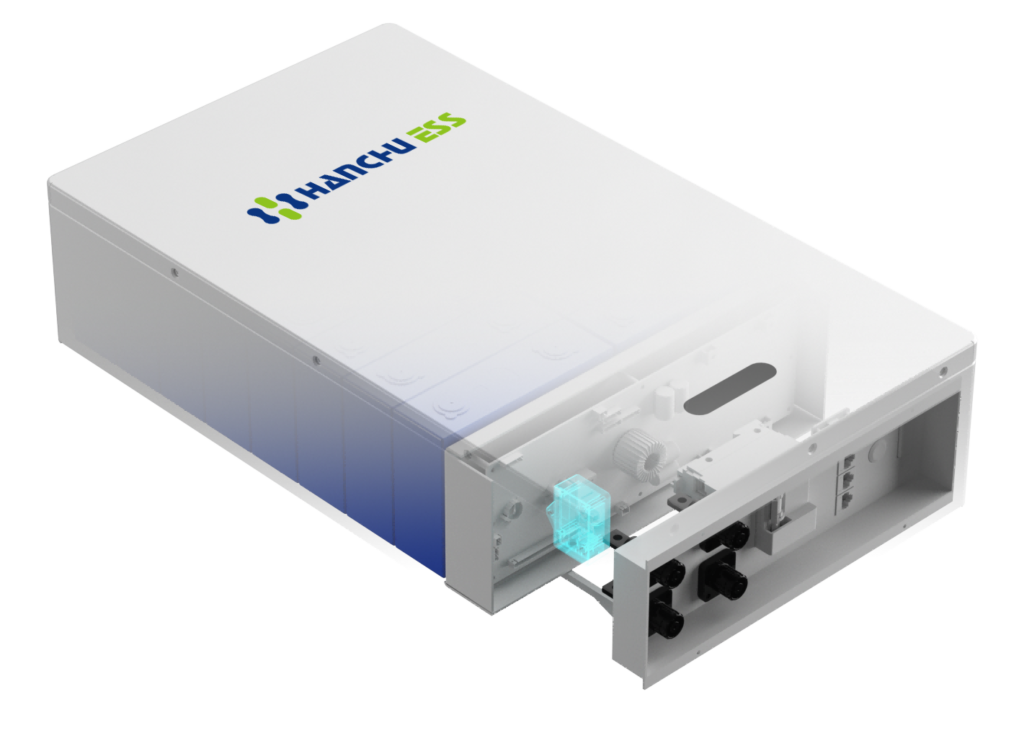

Convenient Installation
With a hidden wall-mount bracket and easy plug-and-play terminals, installation is quick. The system automatically sets master and slave addresses, so there’s no need to adjust DIP switches, saving you time and effort.
Get in Touch
Key Features:
Model: HOME-ESS-LV-5.12K
Nominal Voltage: 51.2V
Nominal Charge/Discharge Current: 100A
Depth of Discharge: 95%
Dimension (W*D*H): 338*138.5*600mm
Certifications: IEC 62619/CE
Nominal Energy: 5.12kWh
Cell Type: LFP(LiFePO4)
Communication Port: CAN/RS485/WIFI/Bluetooth
The HOME-ESS-LV-9.4K features LiFePO₄ blade cells that offer better energy density and increased safety, giving the battery stronger performance and a longer life.
Contact UsSmart Management
It keeps track of voltage, current, temperature, and more to optimise how the battery charges and discharges. Built-in protections keep it running safely, help it last longer, and make energy use more efficient.

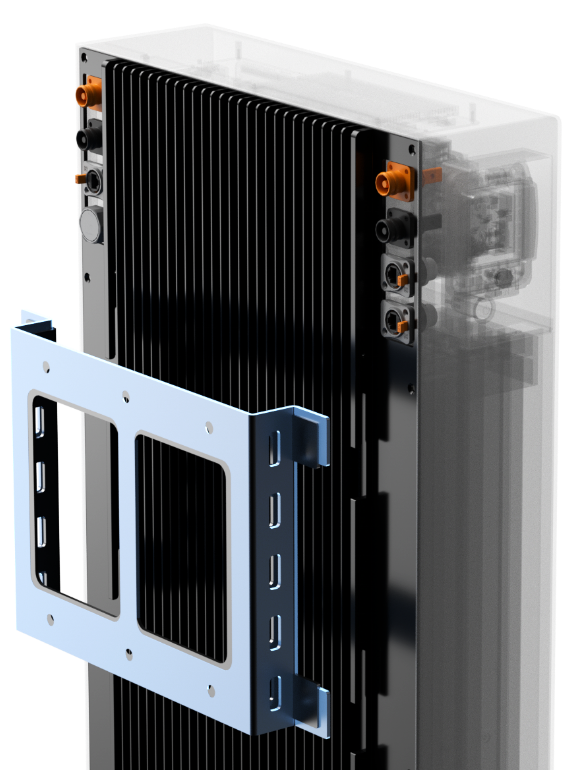

Heat Dissipation Backplate
The battery includes a heat-dissipation plate on the back to help it stay cooler. This lowers the temperature, extends its life, and keeps the system running safely and reliably.

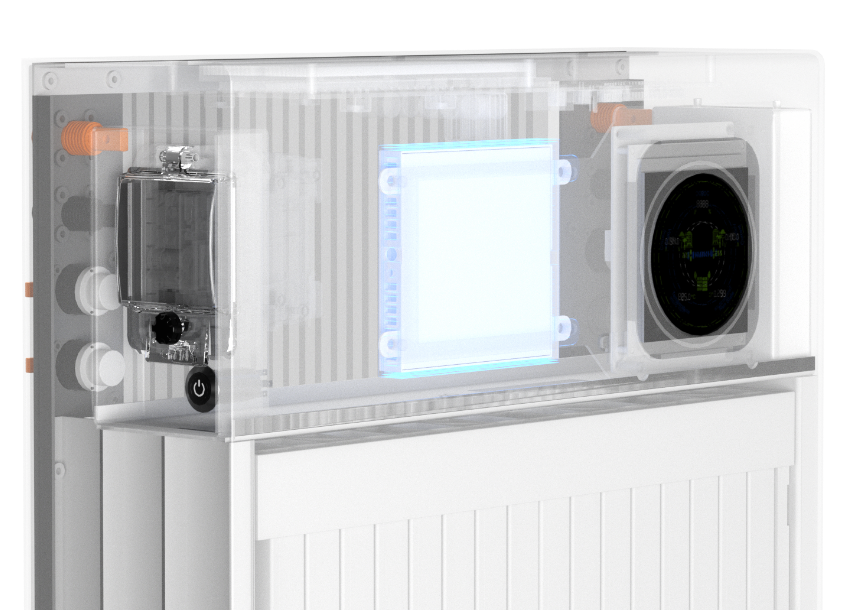

Rear-Mounted Breathing Explosion-Proof Valve
It keeps internal battery pressure from rising, which helps prevent fires or explosions and keeps both the equipment and its surroundings safe.
Immersive Fire Suppression
It includes a built-in thermal aerosol system that can quickly control fires, stop them from spreading, and reduce damage.
Convenient Installation
The hidden wall-mount bracket works for both floor or wall installations. Dual wiring at the back makes parallel setup easy and keeps the overall look tidy and attractive.
Get in Touch
Key Features:
Model: HOME-ESS-LV-9.4K
Nominal Voltage: 51.2V
Nominal Charge/Discharge Current: 100A
Depth of Discharge: 95%
Dimension (W*D*H): 430*150*800mm
Certifications: IEC 62619/CE, 63056/CE/RED/UN 38.3
Nominal Energy: 9.4kWh
Cell Type: LFP(LiFePO4)
Communication Port: CAN/RS485/WIFI/Bluetooth

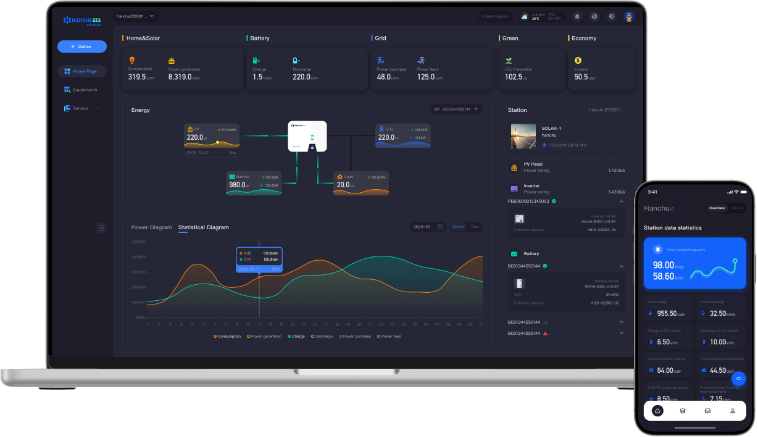

Users and operators can see the system’s real-time status, carry out remote scheduling, update software over the air, and review past data—all of which make after-sales support easier and more convenient.
